BPB547WD

BPB547WD

47PPM A4 B&W Smart MFD with DSPF

POA

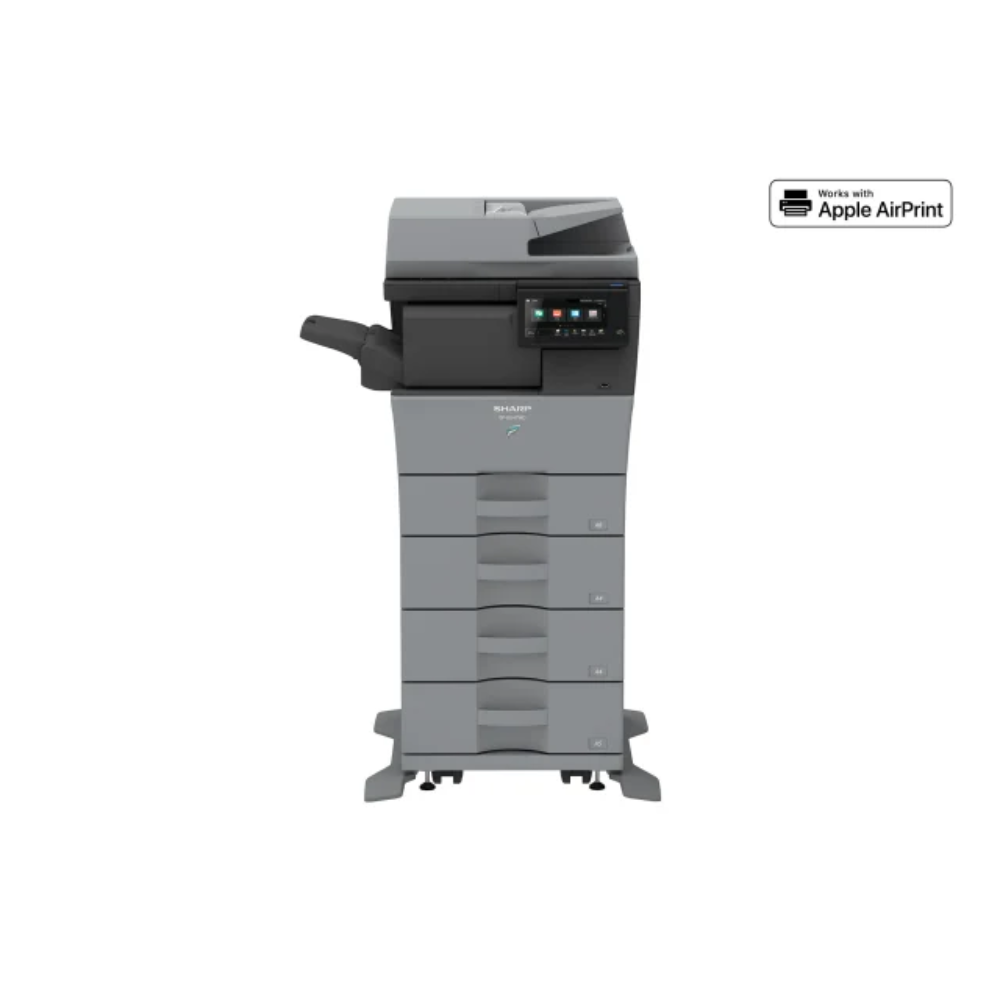

The Sharp BP-B547WD offers reliable, secure document handling in a compact design.

Category:

47PPM A4 B&W Smart MFD with DSPF

The Sharp BP-B547WD Advanced A4 monochrome MFD delivers an intuitive user experience and the confidence of knowing their jobs will come out right the first time, every time. With high-performance features typically found on larger A3 machines, this duplexing single pass feeder MFD delivers the security you need, with the productivity and reliability you want.

Designed to fit today’s diverse workstyles, this compact multifunction device enables workers to collaborate and share information seamlessly and securely throughout the office environment. Enhanced cloud services such as Microsoft Teams make it easy to streamline communication and boost productivity with hybrid workers.



Features

7-Inch Colour LCD Touchscreen

Sharp’s award-winning, customisable touchscreen display incorporates an Easy UI mode, for fast, simple operation, with basic functions displayed in large, clearly labelled tiles and keys. And with the Advanced Preview function, you can also check document finishes, edit pages in advance, and more.



Link with Mobile Devices

Swiftly linking Sharp MFDs with mobile devices streamlines time-consuming workflows and gives easy access to data on devices. Not only can you send scanned documents to mobile devices, you can also print documents or photos. The Sharpdesk Mobile application also lets you easily link your mobile device via the MFP NFC tag or by scanning the MFPs QR Code®



Convert Documents via OCR

With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.



Print & Share Documents Easily

Seamlessly collaborate with colleagues, even when they are working remotely. With Cloud Connect, businesses gain access to popular cloud services including Microsoft Teams, Google Drive, and others. The Sharp Application Portal also makes it easy for administrators to add new or update existing applications directly from the MFD touchscreen.



One-Touch Job Recall

The 10 most recent jobs—like copying, faxing, and scanning—can be called up on the LCD screen and their settings displayed. You can then change the settings as required and repeat those jobs.



Direct Printing/Scanning with USB Drives

Insert a USB drive and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive — or you can scan documents directly to the USB drive.



Multi-Crop & Image Crop Functions

Multiple receipts, photos, and other items can be scanned all at once, with each one saved as a separate file. This helps you streamline the filing of receipts and bills. This MFD can also crop photos from documents such as magazine pages and save them as individual files.



Sharp OSA®

Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.

Specifications

General Information
Original SizeMax A4
Operation PanelColour 7″ LCD Touch-Screen
Product EnvironmentSmall Office/Workgroup
Standard Paper Capacity550 (500-sheets x 1 + 50-sheet multi bypass)
Maximum Paper Capacity2,350 sheets (500-sheets x 1 + 50-sheet Multi bypass + 600-sheets x 3)
Paper WeightTray 1: 60 g/m2 to 176 g/m2, Trays 2 to 4: 55 g/m2 to 220 g/m2, Multi-bypass tray: 55 g/m2 to 216 g/m2
Output Capacity250 sheets
Warm-up Time20 sec or less
Resolution (Output)600 x 600dpi, 1200 x 1200dpi, 9600 (equivalent) x 600dpi
Memory5GB (copy/print shared)
HDD Capacity128GB SSD, Opt 512GB SSD
DuplexStd. (60 – 105gsm)
Dimensions (WxDxH)492 x 517 x 610 millimetre
Weight31 kilogram
Sharp OSA6.0 (Standard)
Copier Specification
Copy Speed33 ppm (A4)
E-Sort / SOPMYes / Yes
Continuous CopyMax 9,999
Scan Resolution600 x 600 dpi, 600 x 400 dpi,
Zoom Range25 – 400% (DSPF 25 – 200%) in 1% increments
Environmental
Power ConsumptionMax. 1.84 kW
TEC Value (Weekly)0.56 kWh
Noise (Measured)Operating 57.0db, Standby 26.0dB,
Document Feeder
Document FeederStd. RSPF
Original CapacityMax 100 sheets
Scan Speed (Max)65 opm (1-sided), 130 opm (2-sided)
Document Filing
Quick/Main FolderQuick/ Main/ Custom Folder: Max: 5,000 pages or 500 files (STD); Quick Folder: Max: 10,000 pages or 1,000 files Main/Custom: Max. 20,000 pages or 3,000 files with BP-SD10 (512GB SSD)
Preview ThumbnailsSupported (includes Advanced Edit Mode)
Printer Specification
Print Speed (Max)47 ppm (A4)
PDL (Emulation)STD: PCL6 emulation, Adobe® PostScript® 3™
InterfaceUSB 2.0 (host, high-speed), USB 3.0 (host, super speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/b/g/n/ac)
Supported OSWindows® 10, Windows® 11, Windows Server® 2012(R2), Windows Server® 2016, Windows Server® 2019, Windows Server® 2022, Mac OS 10.10 to 10.15, 11, 12, 13 & 14
Utility Software (Download)Status Monitor
Sharpdesk MobileSupported
Airprint SupportSupported
Network Scanner
ResolutionPush scan: 100, 150, 200, 300, 400, 600 dpi; Pull scan 75, 100, 150, 200, 300, 400, 600 dpi (50 to 9,600 dpi via user setting)
FormatMono: TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, searchable PDF, DOCX, CSV, text (TXT), rich text (RTF) Colour: TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, compact PDF, JPEG, searchable PDF, DOCX, CSV, text (TXT), rich text (RTF)
DestinationDesktop (NST-Lite), FTP, E-Mail, SMB Folder, USB & Local drive
Utility Software (Download)NST-Lite
Cloud Connectivity
RequirementStandard
Cloud ConnectorsMicrosoft® One Drive® for Business, Microsoft® SharePoint® Online, Microsoft® Teams®, Google Drive™, Box™ & Dropbox™
Email ConnectorsMicrosoft® Exchange (Online) & Google Gmail™
Microsoft Universal PrintSupported
Sharp Application Cloud PortalSupported
Fascimillie
Facsimile ModelStandard
Communication ProtocolSuper G3/G3
Transmission SpeedLess than 3 seconds
CompressionMH, MR, MMR, JBIG
Inbound RoutingYes (PDF, Single TIFF, Multi TIFF, XPS) to E-mail, FTP, SMB, Desktop, Fax & I-Fax.
PC FaxYes (For Windows only)

Warranty

Business Products Warranty Statement

For purchases from 1st November 2022, this Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
