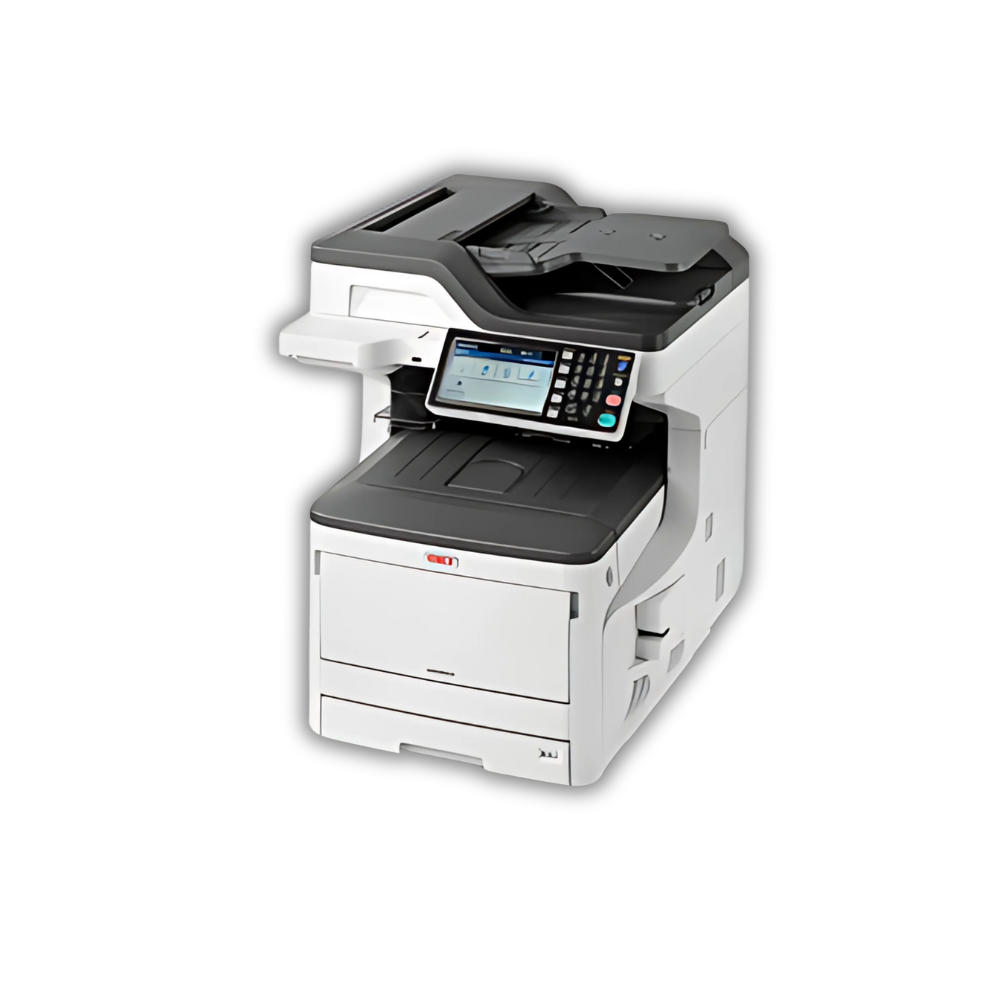

ES8473 MFP

Name: ES8473 MFP - Status Pro | Crossprint
Availability: InStock

With fast print and copy speeds, the high capacity ES8473 MFP A3 colour multifunction printer is the ideal solution for the large, demanding workbroups. Low user intervention and lower running costs, together with the easy-to-use operator panel help keep busy teams productive.

Number of users: 1 – 30+
Functionality: Duplex print, copy, scan and fax
A4 Print speed: 35ppm colour/mono
A3 Print speed: 20ppm colour/mono
Copy speed: 35ppm colour/mono
Maximum paper capacity: ES8473dn: 400 sheets of 80gsm; ES8473dnct: 935 sheets of 80gsm; ES8473dnv: 2,005 sheets of 80gsm
Monthly print volume: 10,000 pages
Finishing: Convenience staper
Security: Secure Print

Category: Multifunction Printers

Fast print and copy speeds combined with higher capacity consumables make the ES8473 MFP an ideal solution for demanding workgroups. Combining rapid print speeds of up to 35ppm with advanced scan, copy and fax functions and an easy-to-use operator panel, the flexible, high-performance device features smart software solutions and integrates with a range of third-party solutions.

High performance – Rapid print speeds and efficient consumables

Built to perform, the ES8473 MFP delivers exceptional colour at impressive speeds, with efficient, ultra-high-capacity toners minimising running costs and user intervention.

High-resolution colour and mono printing with A4 print speeds of up to 35ppm colour/mono, 20ppm colour/mono A3
Encrypted Secure Print function for protected printing
Auto-sensing multi-purpose tray for printing on a wide range of media sizes and weights, from A6 to 1.3m long banners and up to 256gsm
Duplex printing as standard
Paper capacity of up to 2,005 sheets
Convenient built-in stapler as standard for easy post-production finishing
Ultra-high-capacity toners

Quality copying – Fast, high-quality copy output

The powerful ES8473 MFP combines reliable, industry-leading digital LED print technology with a High Definition LED colour scanner, providing rapid scan speeds and superior copy quality. Document collation automatically sorts copies of multi-page documents, saving time.

USB and network TWAIN scanning and save settings for repeated tasks
LDAP provides direct access to contact and email data from existing directory server
Scan directly to: USB, Network folder, email, FTP server, Local PC and Remote scan
Fast scan speed of up to 50ppm and 100 sheet RADF for multi-page, single and double-sided documents

Flexible features – Customisable interface and seamless workflow integration

Featuring an intuitive, user-friendly display and OKI’s smart Extendable Platform (sXP), the advanced ES8473 MFP helps streamline document-intensive business processes. Seamless integration with third-party solutions including document management, distribution and capture helps to meet current and future document management requirements.

Customisable colour LCD touch screen with intuitive menu system, enhanced help functionality and Job Macro functions for frequent actions
Range of software solutions including SENDYS Explorer, ABBYY FineReader, smartPrintSuperVision and mobile printing solutions provide added functionality and control
smart Extendable Platform (sXP) enables seamless integration with document workflows and third-party solutions
USB and network TWAIN scanning and save settings for repeated tasks
LDAP provides direct access to contact and email data from existing directory server
Scan directly to: USB, Network folder, email, FTP server, Local PC and Remote scan

Enhanced fax – Filter and send faxes with super G3 speed

Consolidating multiple devices into one high-performance multifunction printer, the ES8473 MFP reinvents fax capability. Fax documents directly from or to a PC, forward faxes to another machine, networked folder or email address, store and view incoming faxes and block junk transmissions.

Super G3 sends and receives faxes at high speed, with resolution up to 392dpi
Fax documents directly from or to a PC or forward faces to another fax machine or email address
Block junk faxes, store and view incoming faxes on touch screen display
Save time with 40 one-touch buttons and 1,000 speed dials

DOWNLOAD BROCHURE

ES8473MFP Brochure

ES8473MFP Specification Sheet

Overview

High performance

Rapid print speeds and efficient consumables

Quality copying

Fast, high-quality copy output

Flexible features

Customisable interface and seamless workflow integration

The OKI wireless module to suit ES8473 part# 45830202 is in limited supply. Please check with your OKI reseller for availability prior to placing an order.

Model	Order number	Features
ES8473dn MFP	45850216	Duplex, networked
ES8473dnct MFP	45850216dnct	Duplex, networked, 2nd paper tray, cabinet
ES8473dnx MFP	45850216dnx	Duplex, networked, 2nd/3rd paper trays, caster base
ES8473dnv MFP	45850216dnv	Duplex, networked, 2nd/3rd/4th paper trays, caster base

Specifications

ES8473 MFP
COPY
Type	Floor / Desktop
Scanning Method	Color CIS
Printing Method	Digital 4 LED Full-color Electrophotographic Printing Method
Copy Density Adjustment	7 levels (Manual)
Input Capacity	Tray 1 : 300 sheets (Optional)Additional Tray : 535 sheets Multi-purpose tray : 100 sheets
Scanning Resolution	Up to 600 x 600 dpi
Writing Resolution	Up to 600 x 1200 dpi
Acceptable Original	Sheet, Book
Original Size	Flatbed: A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11″ x 17″), Statement, Folio, Custom Size: Width 0-297 mm x Length 0-431 mm; ADF: A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11″ x 17″), Statement, Folio, Custom Size: Width 105-297 mm x Length 148-431 mm
Copy Paper Size	A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11″ x 17″), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard, Custom Size: Width 64-297 mm x Length 90-1321 mm
Copy Scaling	25 – 400 %
Maximum Copies	999 sheets
Copy Speed	A4 35 cpm color, 35 cpm mono
First Copy Out Time	Color: Approx. 10.0 seconds, Mono: Approx. 10.0 seconds
Warm-up Time	Approx. 32.0 seconds from power-on
Power Source	Single phase 220 – 240 VAC ±0%, 50/60 Hz ±2%
Power Consumption	Operating: Max. 1,400W / Ave. 850W Idle: 120W Power Save: 30.0W Deep Sleep: 3.0W Auto-Off: 0.1W
Memory (Std./Max.)	1,280MB/1,280MB
Noise Level	Operating :Approx. 54 dBA Idle: < 37 dBA
Operating Environment	Operating: 10 – 32 °C, 20 – 80 %RH Storage: 0 – 43 °C, 10 – 90 %RH No condensation
Dimensions(WxDxH)	563 x 600 x 700 mm
Weight(includes supplies)	Approx. 64.0 kg
Duty Cycle	Recommended: 10,000 pages/month Maximum: 75,000 pages/month
In the Box	Others, Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM, Ferrite Core

PRINT
Print Speed	A4(Landscape) 35 ppm color, 35 ppm mono A3 20 ppm color, 20 ppm mono
First Print Out Time	Color: Approx. 9.5 seconds Mono: Approx. 9.5 seconds
Printing Resolution	600 x 600 dpi 600 x 1200 dpi (4 levels) 600 x 600 dpi Physical dot pitch: 600 dpi
Interface	1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host
Protocol	TCP/IP
Printer Language	PostScript 3 emulation, PDF v1.7 emulation, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, IBM ProPrinter emulation, Epson FX Emulation
Supported OS (Click here for latest OS)	Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux
Memory (Std./Max.)	1,280MB/1,280MB
Hard Disk Drive	250 GB
Font	Adobe PostScript 80 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts
Paper Size	A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11″ x 17″), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard, Custom Size: Width 64-297 mm x Length 90-1321 mm
Paper Weight	Tray 1 : 64 – 220 gsm (Optional)Additional Tray : 64 – 176 gsm Multi-purpose tray : 64 – 256 gsm
Input Capacity	Tray 1 : 300 sheets (Optional)Additional Tray : 535 sheets Multi-purpose tray : 100 sheets
Output Capacity	Upper tray : Max. 100 sheets Face Down : Max. 250 sheets Face Up : Max. 100 sheets

SCAN
Scan Resolution	Max. 600 x 600 dpi
Scan Speed	Max. 50 ipm Color, 50 ipm mono
Interfaces	1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional)Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host
Supported Protocol	SMB, FTP(S), TWAIN, WIA2.0
Output Format	Secure PDF, High compression PDF, JPEG, TIFF, XPS
Driver	TWAIN, WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later)

FAX
Applicable Line	PSTN, PBX
Interface	RJ-11 x 2 (Line, Tel)
Transmission Resolution	Normal: 8 dots/mm x 3.85 lines/mm Fine/Photo: 8 dots/mm x 7.7 lines/mm Ultra-Fine: 16 dots/mm x 15.4 lines/mm
Communication Speed	Super G3: 33.6kbps
Encoding Method	MH, MR, MMR, JBIG
Communication Mode	ITU-T G3, Super G3
Transmission Original Size	Max. A3, Length 420 mm
Paper Size	Max. A3, Min. A5
Transmission Time	Approx. 2.0 sec. / page
Memory	Max. 400 pages (8MB)
Other Function	Speed Dial(1000 locations), Broadcast(32 group, 100 locations/group), Duplex scanning, F-Code Confidential FAX, Delayed Tx, LDAP, PC Fax, PDF Store/Distribution

DOCUMENT FEEDER
Type	Reverse Automatic Document Feeder (RADF)
Original Size	A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11″ x 17″), Statement, Folio, Custom Size: Width 0-297 mm x Length 0-431 mm
Original Weight	60 – 120 gsm
Loading Capacity	Max. 100 sheets
Original Exchange Speed	Simplex 35 ppm color, 35 ppm mono Duplex 17 ppm color, 17 ppm mono
