PNL862B

PNL862B

4K BIG PAD 86″ Precision Touch Display

POA

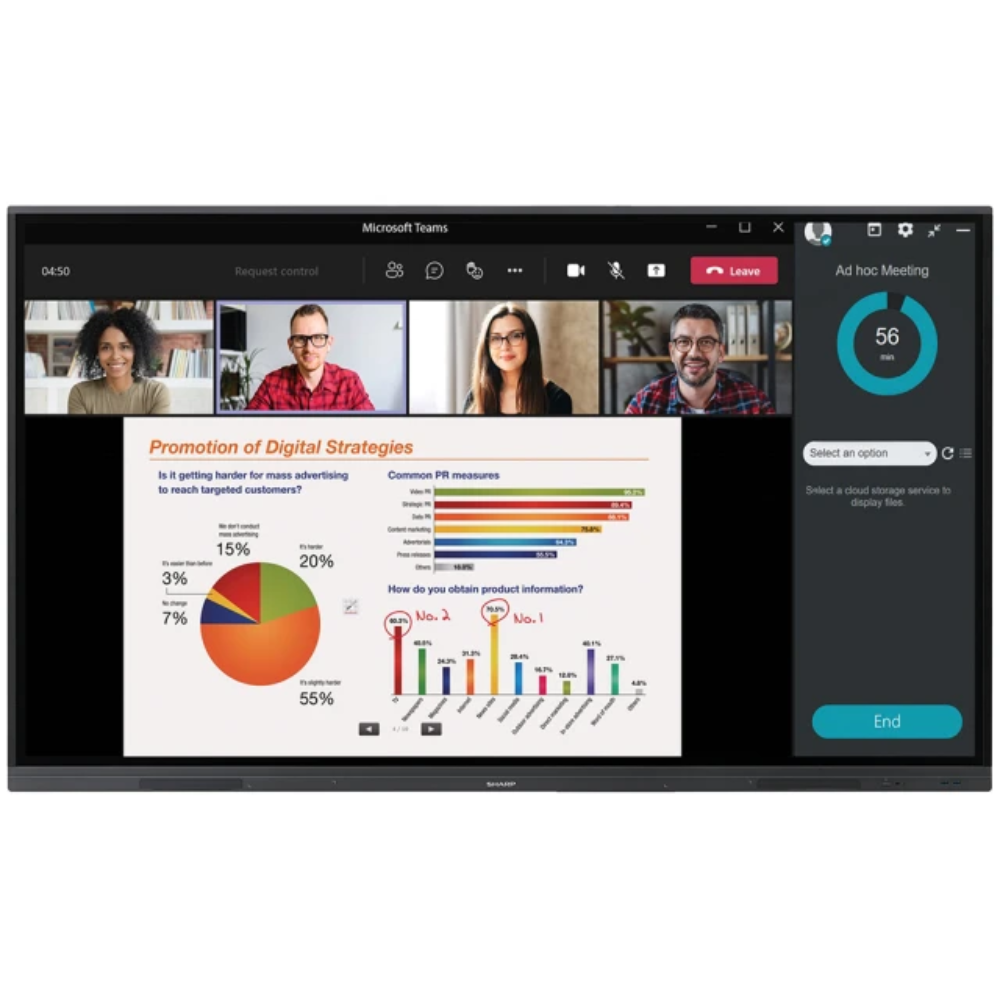

The Sharp PNL862B is an 86″ 4K BIG PAD for interactive collaboration in professional settings.

4K BIG PAD 86″ Precision Touch Display

Sharp’s PNL862B 4K BIG PAD is the latest and smartest newcomer in Sharp’s mainstream professional office range of interactive display solutions.

Designed for office meetings, architectural construction, engineering design and demanding collaborative working environments, the Sharp L2B range builds on a unique pioneering IWB legacy and provides an outstanding collaborative experience.



Features

Enjoy a more natural way of working

The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.

The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.

Benefits

    • Pen-On-Paper user experience – Zero Bonding and Sharp’s PrecisionTouch technology enable highly accurate and responsive writing and drawing with up to 20 touch points.
    • Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications.
    • Latest BYOD wireless collaboration – wirelessly share content from any device via the integrated Android PC or utilise the OPS slot to extend the BIG PADs functionality with third-party add-ons and solutions.
    • Maximum flexibility – provides exceptional freedom of use to meet the demands of even the most challenging corporate environments using USB-C, HDMI or VGA connectors.
    • Secure by design – graded data security allows to adjust the level of security of the Android PC and maintain protection at the security level you need.

Specifications

General Information
Screen Size 86 inch
Max. Resolution 3840 x 2160 pixels
Max. Brightness (average) 350 cd/m2
Contrast Ratio 4000:1
Viewing Angle (H/V) 178
Supported Orientation Landscape
Dimensions (W x D x H) 1488.4 x 85.5 x 896.6 millimetre
Weight 36.5 kilogram
VESA Mounting [mm] 4 holes M6 600 x 400,
Touch Screen
Detection Method Precision Touch technology – IR
Multi Touch 20-Points
Protection Glass Thickness Approx. 3.4 mm
Shock Resistance 130cm
Computer Connector USB (3.0 compliant) (Type B) x 2
Connectivity
Input Video Digital Mini D-sub 15 pin, 3 x 1 HDMI x 3, USB Type-C x 1
Audio Input 1 x 3.5 mm Stereo Mini Jack
Input Control 1 x D-Sub 9 pin (RS-232) (male); Remote In (stereo mini jack)
Audio Output 1 x 3.5 mm Stereo Mini Jack
LAN RJ45: 10 Base-T/100 Base-TX/1000 Base-T
Wireless LAN IEEE 802.11a/b/g/n/ac/ax compliant
Bluetooth 5.0 compliant, Supported protocols: A2DP, AVRCP, GATT, HID
USB USB 3.0 compliant x 4, USB 2.0 compliant x 1
SOC
OS Android 9.0
CPU Arm Cortex-A73 (Quad-Core)
Memory 4GB
Storage 32GB
Installation
Installation Landscape
Electrical
Power Consumption 400W
Environmental
Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80% (no condensation)
Other Features
Audio (Speakers) Integrated Speakers (10W + 10W)
Shipping Content (Accessories) AC power cord, remote control unit, remote control unit battery (AAA size) × 2, USB cable, passive touch pen x 2, Wireless LAN module, STB rear mount plate

Warranty

Business Products Warranty Statement

For purchases from 1st November 2022, this Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
