PN-LA752 75″ InGlass™Touch Display

POA

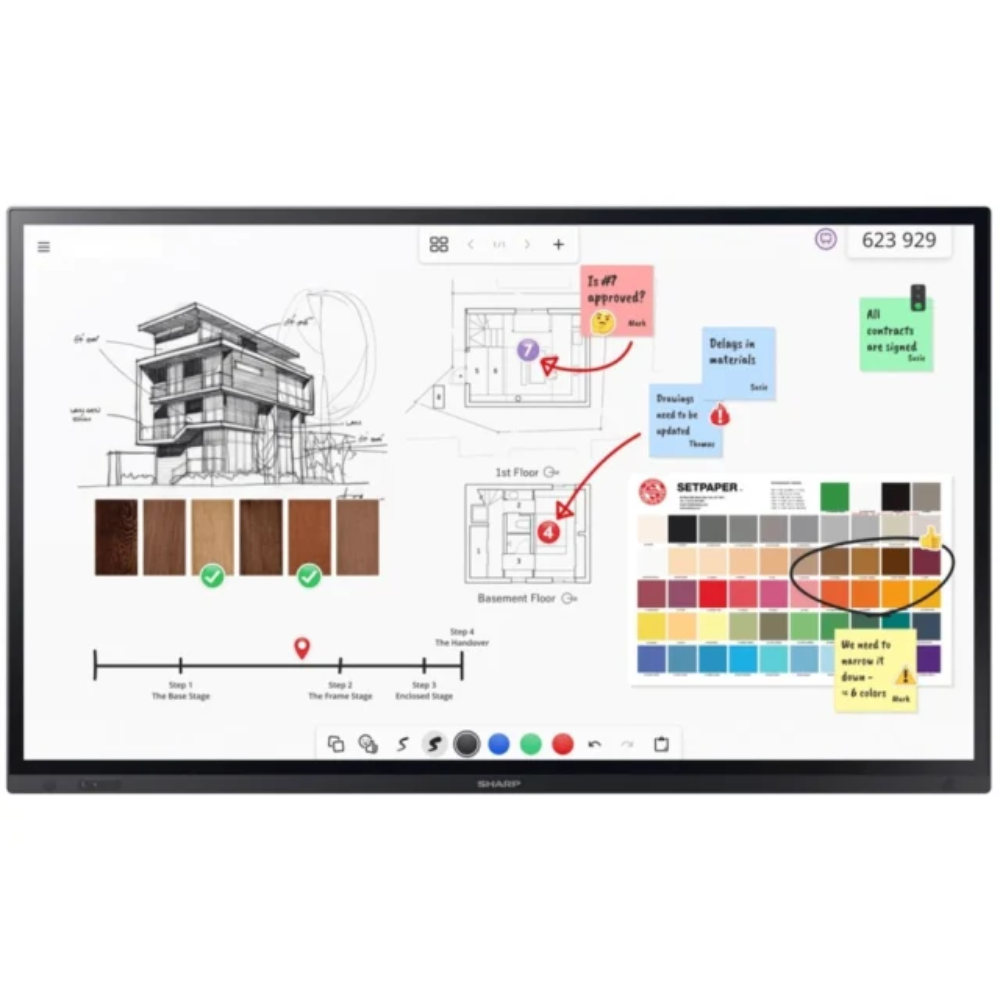

The Sharp PN-LA752 is a 75″ InGlass™ touch display with customizable features.

PN-LA752 75″ InGlass™Touch Display

Bringing advanced professional functionality to Enterprise users, the Sharp/NEC LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.



DOWNLOAD BROCHURE

PNLA Range Datasheet

Features

Safeguarding security and promoting productivity in hybrid meetings

Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.

The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.

The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.

Benefits

  • Most natural writing experience – InGlass™ M5 premium touch system supports patented pressure sensitivity using passive pens as well as Windows Ink and palm rejection.
  • Secure by design – the non-Android platform with additional security features meets the highest IT security standards.
  • Optional Windows based Intel SDM slot-in PC – driving unlimited versatility with powerful integrated computing. Includes Sharp’s Meeting Launcher for quick and easy access to your apps offering a secure and locked environment.
  • Increase your productivity – benefit from a free one-year license for FlatFrog Board for Rooms. FlatFrog Board whiteboard software makes hybrid work easy and productive for everyone.
  • Energy efficiency – built-in functionality including an ambient light sensor, human presence detection and eco modes help to reduce power consumption.

Specifications

General Information
Panel Technology IPS with Direct LED backlights
Screen Size 75 inch
Aspect Ratio 16:9
Max. Brightness (average) 500 (LCD panel without glass); 450 (product) cd/m2
Contrast Ratio 1200:1
Viewing Angle (H/V) 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (10bit)
Colour Gamut 68% of DCI
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Supported Orientation Face Up; Landscape; Portrait
Touch Screen
Touch Technology InGlass™ M5
Multi Touch Real multi-touch up to 20 touches
Response Time [ms] ≤ 15
Touch Method Finger; Gloves; Stylus (≥ 2 mm)
Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
Data Interface USB-HID
Accuracy [mm] < 1
Windows Ink yes
Palm Rejection yes
Glass
Type Premium toughened glass, anti-glare coating; Zero Bonding
Thickness [mm] 3
Haze Level [%] 4 ~ 8
Hardness [H] ≥ 8
Resolution
Native Resolution 3840 x 2160
Supported Resolutions 1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1920 x 1080; 1920 x 1200; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160; 7680 x 4320
Synchronisation Rate
Horizontal Frequency [kHz] 15 – 135
Vertical Frequency [Hz] 23 – 76
Connectivity
Input Video Digital 1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; RS232
Input Data 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream); 2 x USB 2.0 (Downstream)
Output Video Digital 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC)
Output Audio Analogue 1 x 3.5 mm jack
Output Control 1 x LAN 100Mbit
Input Detect Custom; First; Last
PiP/PbP Dual-Split; Quad-Split; scalable picture size
Open Modular Intelligence
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W
Sensors
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
Presence Sensor H angle left: 60°, H angle right: 60°, Distance: 3.6 m
Electrical
Power Consumption 205W shipping
Power Savings Mode <0.5W (ECO Standby); 2W (Network Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal
Environmental
Operating Temperature 0°C to 35°C
Operating Humidity 20% to 80% (no condensation)
Storage Temperature -20°C to 60°C
Storage Humidity 10% to 80%
Mechanical
Dimensions (W x H x D) [mm] 1,720.1 x 1,025.9 x 86.5
Weight [kg] 56.5
Bezel Width [mm] 32.3 (bottom); 4.8 (left, right and top)
VESA Mounting [mm] 4 holes; 600 x 400 (FDMI); M8
Ingress Protection IP6x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 1,900 x 1,125 x 225
Packaging Weight [kg] 68
Material Metal
Pre-Installed Applications
Free Software Included FlatFrog Board for Rooms (1 year) – free download
Other Features
Certificates CE; EMC Class B; Energy Star 8; FCC Class B; PSB; RCM; RoHS; SASO; UL/C-UL
Pixel Failure Class ISO 9241-307, Class 1
Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
Energy Efficiency LED backlight
Ecological Standards EnergyStar 8.0
Special Characteristics HDMI ARC; NaViSet Administrator 2 – free download; Powered USB Port (5 W)
Audio (Speakers) Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W)
Shipping Content (Accessories) 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Bracket for Mini PC; Cable Clamps; Display; Power Cable; Remote Control; Setup Manual
Operating Hours 24/7
External Control Crestron V2; HDMI CEC; HTTP Browser; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Warranty

Business Products Warranty Statement

For purchases from 1st November 2022, this Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
