PNLC752

PNLC752

75″ Interactive Touch Display

POA

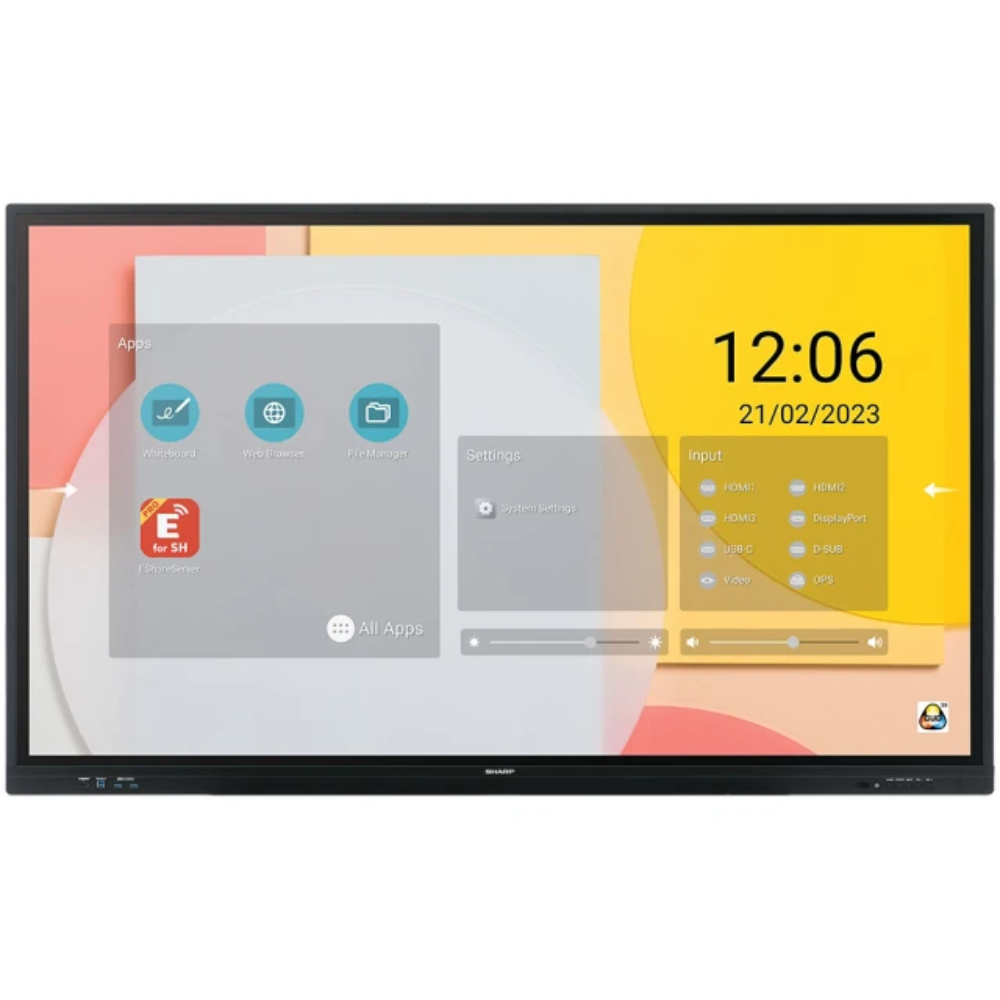

The Sharp PNLC752 is a 75″ 4K display with a “Pen-on-Paper” experience and built-in whiteboard.

75″ Interactive Touch Display

The SHARP PNLC752 interactive touch display combines genuine 4K Ultra-HD resolution and an intuitive “Pen-on-Paper” user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway.

The PNLC752 interactive touch display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.



Features

Boost engagement in learning environments

When you need to engage your audience, you need to make your delivery interactive. Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity, just a single cable connects display to personal device whilst receiving charge in return. Size up your screen area by connecting another display or projector via HDMI-OUT to be seen by a bigger audience.

An all-in-one solution, the LC series features pre-installed functionality for instant interactivity, and with the EShare feature, content can be wirelessly shared between devices for best collaboration amongst peers and mentors. For higher education in classrooms and small work groups, the LC series offers low cost, easy to use functionality to boost engagement in learning environments.

Benefits

    • Enjoy a natural writing experience – with precise and responsive touch interaction through bonded screen technology.
    • Get an out-of-the-box-ready experience – with interactive functionality pre-installed; no external devices needed for an all-in-one solution.
    • EShare – boosts participation by wirelessly sharing content from your device to the display, and from the display to multiple devices simultaneously.
    • USB-C connectivity – instantly appeals to today’s users who favour using their own device. A single cable transmits data, video/audio output and power delivery for the simplest and seamless connection, even powering the connected device at the same time.
    • HDMI-OUT – allows connection of an additional output device such as a projector to present content on a larger canvas to reach a bigger audience.

Specifications

General Information
Panel Technology IPS with Direct LED backlights
Screen Size 75 inch
Max. Resolution 3840 x 2160 pixels
Max. Brightness (average) 450 cd/m2
Contrast Ratio 1200:1
Viewing Angle (H/V) 178
Supported Orientation Landscape
Dimensions (W x D x H) 1722.5 x 1032.1 x 87.1 millimetre
Bezel Width 21.9 (left, right & top); 53.2 (bottom) millimetre
Weight 51 kilogram
VESA Mounting [mm] 4 holes M8 600 x 400 (FDMI)
Touch Screen
Touch Technology Infrared
Multi Touch 20-Points
Data Interface USB 2.0 (full speed) HID; USB powered, plug & play
Synchronisation Rate
Native Resolution 3840 x 2160 pixels
Aspect Ratio 16:9
Supported Resolution 1920×1080, 3840×2160, 1024×768, 1920×1200, 4096×2160, 1280×720, 1366×768, 1280×1024, 1440×900, 1600×1200, 1650×1050, 2560×1600, 1920×2160
Connectivity
Input Video Analogue 1 x VGA
Input Video Digital 1 x Display Port (with HDCP), 1 x USB-C (with HDCP), 3 x HDMI (with HDCP)
Input Audio Analogue 1 x 3.5 mm jack
Input Control 1 x RS232, LAN 10Base-T/100Base-TX/1000Base-T
Input Data 4 x USB 3.0 (Type-B)
Output Video Digital 1 x HDMI (loop through: HDMI, DP, OPS slot-in, Android SoC
Output Audio Digital 1 x SPDIF
Wireless LAN IEEE802.11ac/n/a/g/b compliant
Bluetooth 4.2 compliant, supported protocols: A2DP, AVRCP, GATT, HID, HSP, HFP
SOC
OS Android 11.0
CPU Arm Cortex-A55 (Quad-Core)
Memory 4GB
Storage 32GB
Open Modular Intelligence
Compute Module Slot Slot Technology: Open pluggable specification (NEC/Intel OPS Standard)
Installation
Installation Landscape
Electrical
Power Consumption 200W ECO (Shipping setting), 420W
Power Savings Mode <0.5W (ECO Standby); 2W (Network Standby)
Operating Hours 16/7
Environmental
Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80% (no condensation)
Other Features
Certificates CE, FCC, RCM, REACH, RoHS, UL/C-UL
Audio (Speakers) Integrated Speakers (15W + 15W)
Shipping Content (Accessories) 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Pen Tray; Power Cable; Remote Control; User Manual; Wireless Adapter

Warranty

Business Products Warranty Statement

For purchases from 1st November 2022, this Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
