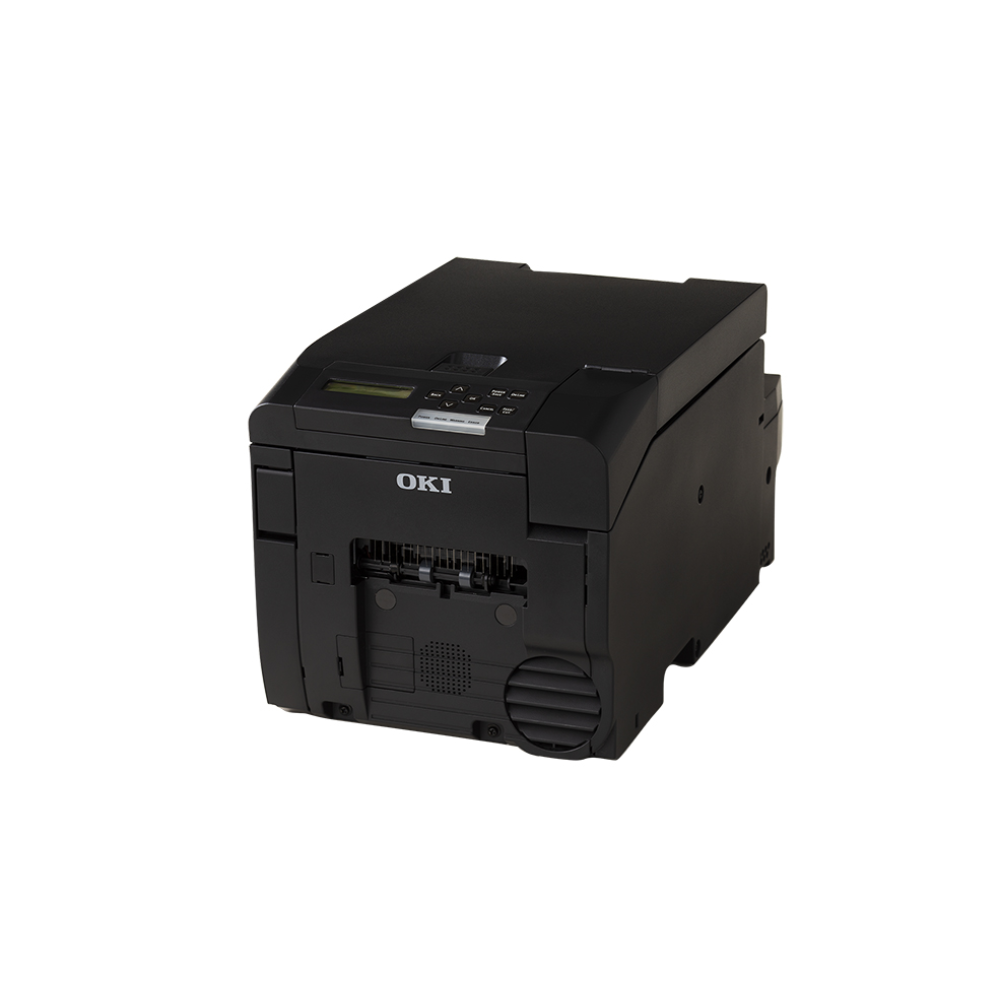

Pro330S

The Pro330S is the world’s smallest (*1) LED dry toner colour label printer and helps companies to produce versatile and professional colour labels and tags that maximise advertising impact vs. standard black and white thermal prints. (*1: Based on the installation area of ​​colour LED / laser printer. Our research in September 2021)

Colour Options: 3-color all-in-one toner cartridge (CMY)
Media correspondence: Plain Paper
Media Width: 25 – 86 mm
Media Length: 53 – 551mm
Print Speed: Up to 152.4mm/s (6ips)
Auto Cutter: Rotary cutter (53 – 551 mm)

Category:

The Pro330S label printer helps companies to produce versatile and professional colour labels and tags that maximise advertising impact vs. standard black and white prints. Due to the compact size (232H × 175W × 311D mm), the Pro330S is ready to use anywhere and easy to transport.

Colour labels for better impact

Full-colour labels and tags for signage, packaging and product identification attract customer attention and increase sales. Perfect in in a variety of environments: Printing businesses, manufacturing and logistics, café’s, butchers, events/hospitality/ amusement parks, retail, nurseries, theatres, museums, healthcare and more!

LED toner technology delivers high print quality

The Pro330S makes it fast and easy to print high-quality full-colour in 1200 x 1200 dpi providing sharp images even on standard paper – saving you money. No need for expensive media to get great colour quality and long-lasting print – water and alcohol proof, UV and scratch resistant.





Media options, sizes and cutting

OKI Label Printer Pro330S

The Pro330S provides excellent print results with plain paper, coated paper labels, synthetic paper and PET. Printing on roll paper and auto cutting improves operational efficiency in shelf tag and POP replacement in retail and distribution stores. Print on die-cut labels as small as 21 mm wide x 50 mm long and with the optional roll paper holder, die-cut labels and plain paper up to 3 inches (82 mm) wide and 8 inches (20 cm) in diameter. The labels can then be printed and cut from the roll paper each time using the standard automatic cutting function (roll to cut printing). When cutting multiple labels, the maximum paper length is 551 mm or less.



CMY toner cartridge and easy maintenance

OKI Label Printer Pro330S

One cartridge image drum (CMY) with toner for 5,000 sheets and all user replaceable parts.



DOWNLOAD BROCHURE

Pro330S Specification Sheet

Overview

Media Flexibility

Print on plain paper and coated paper labels, synthetic paper and PET labels and tags.

Eye Catching Colour

Providing a 1200 dpi colour printing solution suitable for a variety of environments, from general printing to retail, production, POS and KIOSK.

Colour printing on roll paper

Colour printing on roll paper and auto cutting improves operational efficiency.

Various Applications

Vouchers, Coupons, Value-added receipts, ID tags with photos, Visitor Badges, Price and Promotion stickers, Product Labels, Sleeves, Loop ribbons, Labels for boxes.



Model Order number Features
Pro330S 47097011

Specifications

Pro330S
Printing Method Digital 3 LED Full-color Electrophotographic Printing Method
Media Type Plain Paper, Plain Paper Label, Glossy Paper Label, Film Label
Media Width 25 – 86mm
Media Thickness *1 0.08 – 0.25mm
Media Length 53 – 551mm
Media Detection None
Black Mark (bottom)
Black Mark (top)
Hole
Gap
Media Form *2 *3 Roll-fed
Fan-Fold
Cut Sheet
Roll Outer Diameter Max. Ф203.2mm (Ф8″)
Core Inner Diameter Min. Ф50.8mm
Roll Wind Direction Face-out
Total Media Weight Max. 2.4kg
Force of Tugging at Media of Feed Roller 10N or more
Print Width Max. 80mm
Minimum Print Margin Top:2.03mm
Bottom:2.03mm
Right:2.03mm
Left:2.03mm
Print Position Accuracy Vertical : ±1.0mm
Horizontal : ±1.0mm
Cut Accuracy *4 *5 Media length 216mm or under :
±1.5mm
Media length over than 216mm:
±0.7%
Squareness accuracy: 1/100 or under
Straightness accuracy: 1.0mm or under
Cuttable Media Length 53 – 551mm
Print Resolution 1200 x 1200 dpi
600 x 600 dpi
Physical dot pitch: 1200 dpi
Print Speed *6 Max. 152.4mm/s (6ips)
Warm-up Time Approx. 23.0 seconds from power-on
Approx. 28.0 seconds from power save
Time To First Print Approx. 5 seconds (Cold start)
Approx. 4 seconds (Pre heat)
Interface USB 2.0 (High Speed), 100BASE-TX/10BASE-T, (Optional) Wireless LAN (IEEE802.11a/b/g/n)
Protocol TCP/IP
Printer Language PCL 6 (XL) emulation, PCL 5c emulation
Supported OS (Click here for latest OS) Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012
Memory (Std./Max.) 512 MB / 512 MB
Font PCL emulation 27 scalable fonts, 4 bitmap fonts
Media Sensors Position adjustable Transmission Hole, Gap, Notch Sensor
Position adjustable Reflective Black Mark (bottom) Sensor
Position adjustable Reflective Black Mark (top) Sensor
Paper End Sensor
Auto Cutter Rotary blade Full cut
Presenter Mode Optional
Buzzer Standard
Dimensions(WxDxH) 198 x 380 x 195 mm
Weight(includes supplies) Approx. 9.5 kg
Operating Environment Operating: 10 – 32 °C, 20 – 80 %RH
No condensation
Power Source *7 Single phase 220 – 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption Operating: Max. 650W / Ave. 250W
Idle: 10W
Power Save: < 5.0W
Deep Sleep: < 1.0W
Auto-Off: < 0.5W
Noise Level Operating: Approx. 55 dBA
Idle: < 37 dBA
Safety& Environment Regulation RCM Mark, RCM Mark
Unit Life *8 5 Years or 120 km
Cutter Life 1.0 million cuts
Duty Cycle Recommended: 1,500 pages/month
Maximum: 12,000 pages/month
In the Box DVD-ROM, Power cable, Guide Rib x 4

Footnotes;

*1 For single paper (cut paper), it will be 0.06 to 0.25 mm.

*2 Do not use seam paper.

*3 Do not use roll paper that is taped or glued to the roll core

*4 Squareness and straightness do not include 4.2 mm from the edge of the paper.

*5 If the position of the black mark is 33.2 mm or more from the tip of the paper (previous cut position), it is recommended to cut at the center of the black mark.

*6 Printing speed varies depending on paper size, type, and thickness

*7 Operation is not guaranteed when using a UPS (Uninterruptible Power Supply) or an inverter.

*8 Equipment life depends on customer usage
