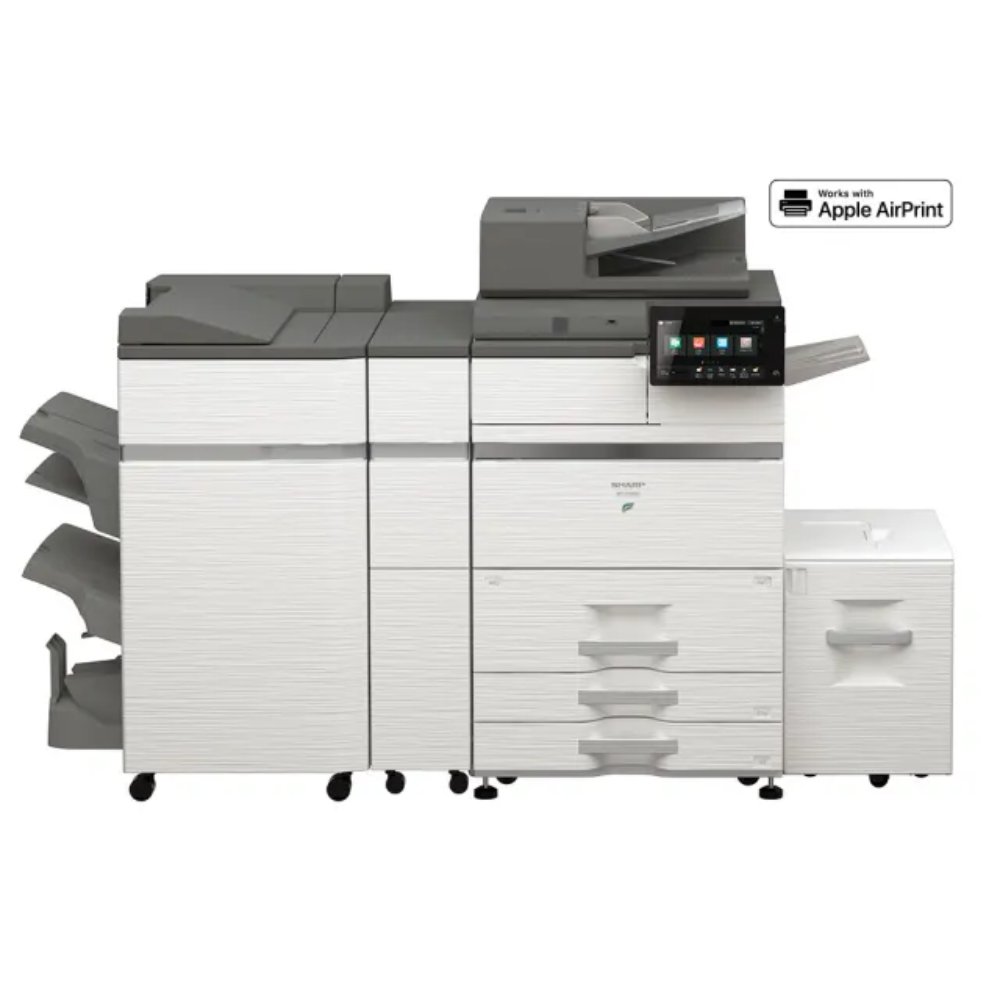

BP70M90

Name: BP70M90
SKU: 4571
Availability: InStock

BP70M90

90PPM A3 B&W High-Volume MFD with DSPF

POA

The Sharp BP70M90 deliver fast, secure printing with seamless cloud integration.

Category: Mono MFD

90PPM A3 B&W High-Volume MFD with DSPF

The New BP70M75 and BP70M90 High Volume series is designed to fit today’s diverse workstyles, taking organizations to the future of business communication by helping them work smarter.

These high speed MFDs enable workers to collaborate and share information seamlessly and securely throughout their office environment. Enhanced cloud services such as Microsoft Teams and OneDrive for Business makes it easy to streamline communication and boost productivity with hybrid workers.

DOWNLOAD BROCHURE

BP70M90 Leaflet (Dec 2022)

BP70M75-BP70M90 Brochure

Features

10.1″ Full-Flat Touchscreen

With a variety of functions accessible via simple, intuitive icons, the MFD operation is smooth and easy. Customising the home screen has become easier than ever and the control panel can be tilted freely at various angles.

Duplex Single Pass Feeder

With Skewed Sheet Detection sensors that detect images that are not fed in straight and the optional Multi-Feed Detection that stops when two or more originals are fed at once, this 300-sheet DSPF can scan up to 280 opm (originals per minute; two-sided).

Built-In Retractable Keyboard

Designed to simplify e-mail address and subject line entries, as well as repetitive scanning tasks and user authentication, the standard built-in keyboard offers users a familiar ergonomic interface.

Link with Mobile Devices

Swiftly linking Sharp MFDs with mobile devices streamlines time-consuming workflows and gives easy access to data on devices. Not only can you send scanned documents to mobile devices, you can also print documents or photos. The Sharpdesk Mobile application also lets you easily link your mobile device via the MFP NFC tag or by scanning the MFPs QR Code®

Convert Documents via OCR

With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.

Print & Share Documents Easily

Seamlessly collaborate with colleagues, even when they are working remotely. With Cloud Connect, businesses gain access to popular cloud services including Microsoft Teams, Google Drive, and others. The Sharp Application Portal also makes it easy for administrators to add new or update existing applications directly from the MFD touchscreen.

One-Touch Job Recall

The 10 most recent jobs—like copying, faxing, and scanning—can be called up on the LCD screen and their settings displayed. You can then change the settings as required and repeat those jobs.

Sharp OSA®

Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.

Specifications

General Information
Original Size	Max A3
Operation Panel	Colour 10.1″ LCD Touch-Screen
Product Environment	Departmental
Printed Paper Size	Tray : A3W-A5R, Bypass: A3W-A5R, Long Paper (Max. 1300mm x 320mm)
Standard Paper Capacity	3,200 sheets (1,250 + 850 + 2 x 500 + 100-sheet multi bypass)
Maximum Paper Capacity	6,700 sheets (1,250 + 850 + 2 x 500 + 100-sheet multi bypass + 3,500 sheets LCC)
Paper Weight	Tray 1 & 2 : 60 – 105 g/m2, Tray 3 & 4: 60 – 220 g/m2, Multi-bypass Tray: 55 – 300 g/m2
Output Capacity	250 sheets (Opt: MXTU15 Centre Tray Unit), 100 sheets (Opt: MXTR21 Right Exit Tray) or Optional Finisher
Warm-up Time	35 secs or less (via Power Button)
Resolution (Output)	Print: 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode)
Memory	5GB (copy/print shared)
HDD Capacity	256GB SSD, Opt 512GB SSD
Dimensions (WxDxH)	663 x 763 x 1,240 millimetre
Weight	163 kilogram
Sharp OSA	6.0 (Standard)
Copier Specification
Copy Speed	90 ppm (A4), 44 ppm (A3), 42 ppm (A3W)
E-Sort / SOPM	Yes / Yes
Continuous Copy	Max 9,999
Scan Resolution	600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi
Zoom Range	25 – 400% (DSPF 25 – 200%) in 1% increments
Environmental
Power Consumption	Max. 2.07 kW
TEC Value (Weekly)	1.26 kWh
Document Feeder
Document Feeder	Std. DSPF
Original Capacity	Max 300 sheets (80 g/m2)
Scan Speed (Max)	140 opm (1-sided), 280 opm (2-sided)
Document Filing
Quick/Main Folder	Quick Folder: Max: 10,000 pages or 1000 files, Main/ Custom: Max. 20,000 pages or 3000 files
Preview Thumbnails	Supported (includes Advanced Edit Mode)
Printer Specification
PDL (Emulation)	STD: PCL6, Adobe® PostScript®3
Interface	USB 2.0 (host, high-speed), USB 3.0 (host, super speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/b/g/n/ac)
Supported OS	Windows® 8.1, Windows® 10, Windows® 11, Windows Server® 2012(R2), Windows Server® 2016, Windows Server® 2019, Windows Server® 2022, Mac OS 10.10 to 10.15, 11, 12, 13 & 14
Utility Software (Download)	Status Monitor
Sharpdesk Mobile	Supported
Airprint Support	Supported
Network Scanner
Resolution	Push scan: 100, 150, 200, 300, 400, 600 dpi; Pull scan 75, 100, 150, 200, 300, 400, 600 dpi (50 to 9,600 dpi via user setting)
Format	TIFF, XPS, JPEG, PDF, Encrypted PDF; Opt: Compact PDF with MXEB19; Opt: Office Format (docx, xlsx, pptx), PDF/A-1a, PDF/A-1b, Searchable PDF, TXT, RTF & UTF-8 with MXEB20. (*colour/greyscale only)
User Registration	Max 2,000 registrations (Max. 500 addresses for one Group Key)
Utility Software (Download)	NST Lite
Cloud Connectivity
Requirement	Standard
Cloud Connectors	Microsoft® One Drive® for Business, Microsoft® SharePoint® Online, Microsoft® Teams®, Google Drive™, Box™ & Dropbox™
Email Connectors	Microsoft® Exchange (Online) & Google Gmail™
Microsoft Universal Print	Supported
Sharp Application Cloud Portal	Supported
Fascimillie
Facsimile Model	Opt : BPFX11
Communication Protocol	Super G3/ G3
Inbound Routing	Yes (PDF, Single TIFF, Multi TIFF, XPS) to E-mail, FTP, SMB, Desktop, Fax & I-Fax.
PC Fax	Yes (For Windows only)

Warranty

Business Products Warranty Statement

For purchases from 1st November 2022, this Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
