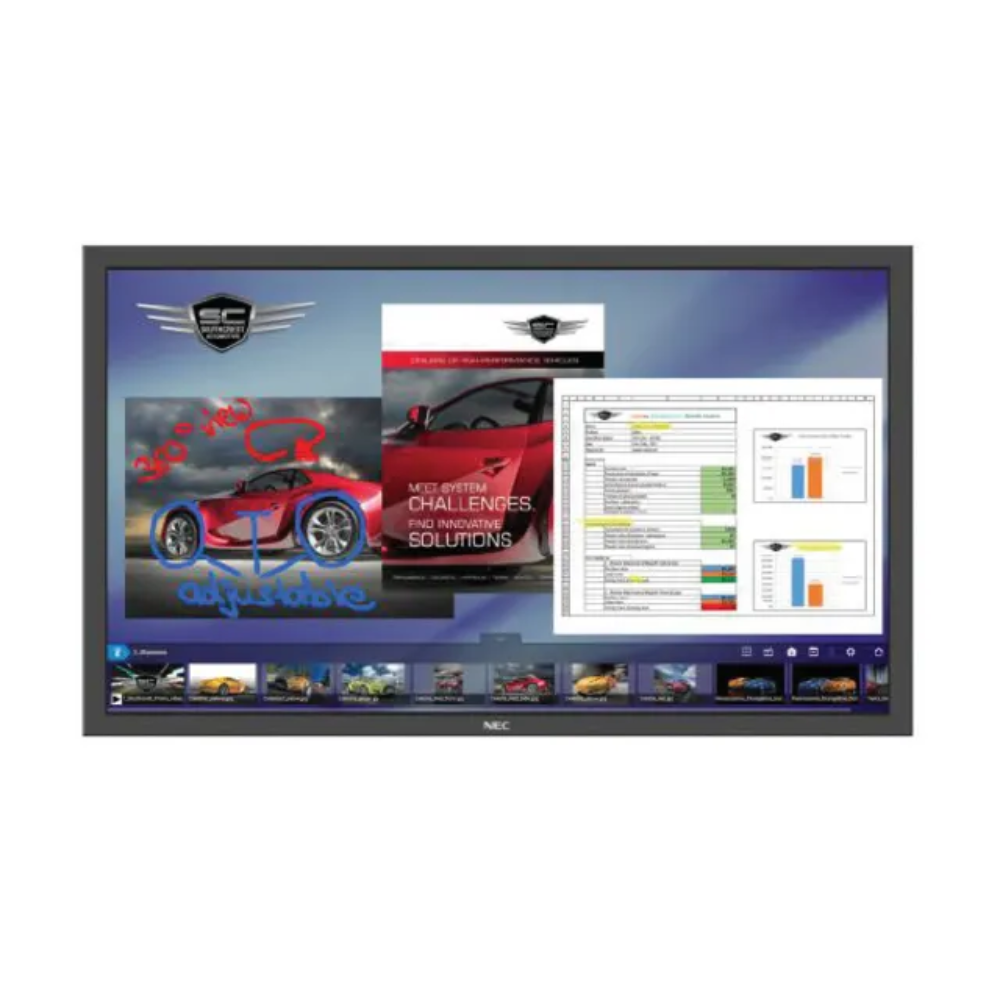

M651 with ShadowSense Touch Interactive Display
An intuitive and user-friendly touch behaviour is crucial to eliminate frustration and allow the user to concentrate on the buying process and not on the technology.
M651-SST
M651-SST
M651 with ShadowSense Touch Interactive Display
POA
The Sharp M651 with ShadowSense Touch features an intuitive interactive display.
Features
Premium interactive experiences
For users of self-service kiosks, an effective user experience is essential in order to maintain customer satisfaction and loyalty. The M-series SST 10-point touch display intelligently ignores accidental touches yet provides accurate and reliable touch performance even when in high ambient light to facilitate an eye-pleasing touch experience. The Open Modular Intelligence (OMI) approach provides tailor-made interactive solutions, where scalable computing power such as Raspberry Pi compute modules or SDM Slot-in PCs are seamlessly embedded into the display.
For interactive way finding signage, the M-series SST multi-touch display perfectly serves your end customers whilst increasing your ROI and securing your investment into a brighter future.
Benefits
- ShadowSense Touch Technology – market-leading touch performance for speed and accuracy, that is immune to ambient light and provides advanced features such as object size and shape recognition, palm rejection, touch size and speed control, hover distance control, and liquid rejection on the touch surface.
- Avoid Touch Frustration – satisfy users with the highest touch point accuracy, filtering out misleading touch-sizes and avoiding ghost touches even in high ambient light operation.
- Seamless Touch Integration – work hand-in-hand with multi-touch applications while using the 10 touch points of ShadowSense™ touch technology in real-time collaboration.
- Simple Plug & Play – no need to install any drivers on the host PC for all major operating systems.
- Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of Sharp’s options for SDM Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Specifications
| General Information | |
|---|---|
| Panel Technology | IPS with Direct LED backlights |
| Screen Size | 65 inch |
| Max. Resolution | 3840 x 2160 pixels |
| Max. Brightness (average) | 500 cd/m2 |
| Contrast Ratio | 8000:1 |
| Viewing Angle (H/V) | 178 |
| Response Time | 8ms |
| Panel Refresh Rate (Hz) | 60Hz |
| Supported Orientation | Landscape, Portrait |
| Dimensions (W x D x H) | 1312 x 77 x 770 millimetre |
| Bezel Width | 32 (top, bottom, left and right) millimetre |
| Weight | 47.5 kilogram |
| VESA Mounting [mm] | 4 holes M6 300 x 300 (FDMI) |
| Resolution | |
| Native Resolution | 3840 x 2160 pixels |
| Supported Resolution | 1920×1080, 3840×2160, 1024×768, 1920×1200, 4096×2160, 1280×720, 1366×768, 1280×1024, 1440×900, 1600×1200, 1650×1050, 2560×1600, 1920×2160 |
| Touch Screen | |
| Touch Technology | ShadowSense |
| Data Interface | USB 2.0 (full speed) HID; USB powered, plug & play |
| Synchronisation Rate | |
| Horizontal Frequency [kHz] | 26 – 91.1 |
| Vertical Frequency [Hz] | 23-76 |
| Aspect Ratio | 16:9 |
| Connectivity | |
| Input Video Digital | 1 x Display Port (with HDCP) 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x Display Port 2 x HDMI |
| Input Control | LAN 100Mbit Remote control wire (3.5mm jack), RS232 |
| Input Data | 1 x USB 2.0 (Media Player) |
| Open Modular Intelligence | |
| Compute Module Slot | RPi4 Compute Module |
| Intel SDM | Accepts Intel® Smart Display Modules Large and Small up to 66W |
| Installation | |
| Installation | Face-up Landscape Portrait |
| Sensors | |
| Ambient Light Sensor | Integrated triggered actions programmable |
| Temperature Sensor | Integrated 3 sensors Triggered actions programmable |
| Electrical | |
| Power Consumption | 120W (shipping) |
| Power Savings Mode | <0.5W (Normal Standby); 2W (Network Standby) |
| Operating Hours | 24/7 |
| Media Player | |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15,360 x 8,640 |
| Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265); TS (MPEG2, H.264, HEVC/H.265); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
| Supported Audio Format | MP3 (MP3); max. bit-rate 320 kBit/s |
| Environmental | |
| Operating Temperature | 0ºC to 40ºC |
| Operating Humidity | 20% to 80% |
| Storage Temperature | -20ºC to 60ºC |
| Storage Humidity | 10% to 90% |
| Other Features | |
| Certificates | Energy Star 8.0, RCM, EMC Class B, PSB, UL/C-UL, VCCI |
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| External Control | AMX NetLinx Support, ASCII Control Commands, Crestron Connected, HDMI CEC, HTTP Browser, PJLink, Scheduled Timer, SNMP |
| Audio (Speakers) | Integrated Speakers (10W + 10W) |
| Shipping Content (Accessories) | HDMI Cable, Power Cable, Remote Control, 2x AAA Batteries, Setup Manual |
| Remote Management | Automated Email Alerts, NEC NaViSet Administrator 2 |
| Security | Disable HW Buttons, Disable IR Functionality, Emergency Notification |
