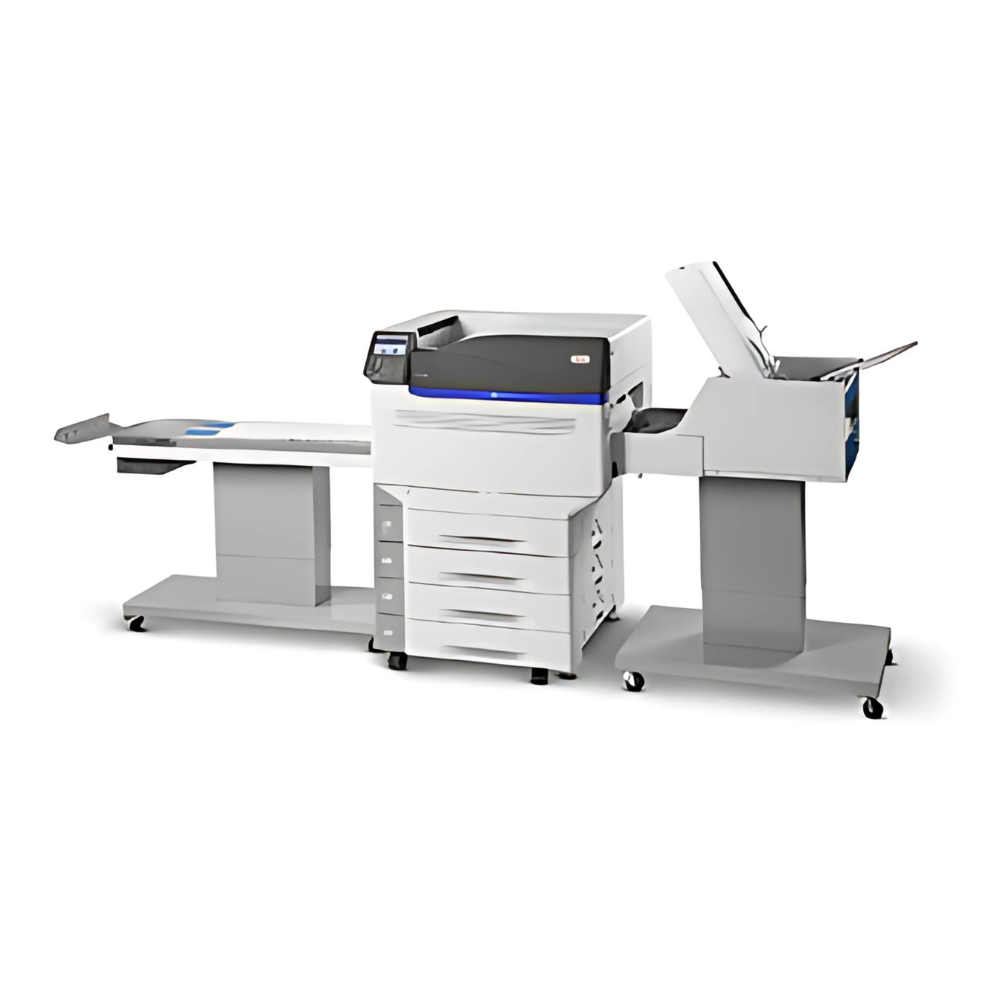

Pro9431 Envelope System

Expand your business with short-run colour production envelope printing. The Pro9431 Envelope Print System delivers vibrant, high quality output on a wide variety of media and substrates.

Category:

An economical four colour envelope printing solution, the Pro9431 Envelope System offers vibrant colour on a wide range of media, with fast printing speeds and high-quality output.

Press quality: Fast digital turnaround, no setup costs

Pro9431 Envelope System Printer collateral

Requests for short-run envelope production (runs of 5,000 or less) used to be a headache for print shops large and small: not economical for traditional offset printers, too much trouble even for small digital print shops. With the Pro9431 Envelope System, a formerly under-serviced market represents an opportunity to expand your business.

  • Cost-effective means to produce short runs
  • Little overhead or job start-up costs
  • Full control over timing

Vibrant colour: High-definition, high-quality output

Digital LED technology produces high-definition printing in the sharpest and some of the most vibrant print output available, making the Pro9431 Envelope System an ideal solution for print shops aiming for world-class four-colour output.

  • Experience rich colour depth and saturation
  • Superb print resolution of 1200 x 1200dpi

Print for profit: Extend in-house colour printing capabilities

The Pro9431 Envelope System enables you to extend your in-house colour printing capabilities from expected to the extraordinary. It’s a new breed of print device, perfect for short runs and, with a duty cycle rated at up to 300,000 pages per month, rugged enough for longer runs.

  • Expand short-run offerings
  • Offer variable data printing in High Definition Colour
  • Designed with multi-shift commercial print shops in mind: ease of operation, maintenance and adjustment
Pro9431 Envelope System Printer Banner

Media versatility: Print on envelopes in a variety of sizes and weights

The Pro9431 Envelope System robust media support enables printing on a wide array of envelope sizes and weights.

  • Straight-through print path handles envelopes and ultra-heavy card stocks/post cards up to 360 gsm
  • Raised and angled envelope stack ensures smooth separation of typically challenging media
  • Envelopes as small as 2.5” x 3.5”(64mm x 89mm) and as large as 13” x 15”(330mm x 382mm)

DOWNLOAD BROCHURE

OKI Pro9 Envelope System Printer Brochure

OKI Pro Series Range Brochure

Overview

Vibrant colour output

World-class four-colour (CMYK) output on white media

Press quality

Fast digital turnaround, no setup costs

Print for profit

Expand in-house colour printing opportunities with a print system featuring the usability, flexibility and reliability that professional print shops demand

Media versatility

Envelopes as small as 2.5″ x 3.5″ (64mm x 89mm) and as large as 13” x 15”(330mm x 382mm)

Specifications

Pro9431
Printing Method Digital 4 LED Full-color Electrophotographic Printing Method
Printing Resolution 1200 x 1200 dpi (2 levels)
1200 x 600 dpi (16 levels)
600 x 600 dpi (2 levels)
Physical dot pitch: 1200 dpi
Warm-up Time Approx. 50.0 seconds from power-on
Approx. 35.0 seconds from power save
First Print Out Time Color: Approx. 8.0 seconds
Mono: Approx. 8.0 seconds
Print Speed A4(Landscape) 50 ppm color, 50 ppm mono
A3 28 ppm color, 28 ppm mono
Interface 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed)
Protocol TCP/IP, EtherTalk
Printer Language Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, IBM ProPrinter emulation, Epson FX Emulation
Supported OS (Click here for latest OS) Windows 8.1, Windows 8.1 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Mac OS X 10.4, Mac OS X 10.3, Mac OS 9, Linux
Memory (Std./Max.) 2GB/2GB
Hard Disk Drive (Optional) 160 GB
Font Adobe PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts
Paper Size Tabloid extra (12″ x 18″), Tabloid (11″ x 17″), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3″ x 5″) (75 x 125mm), A3, A4, A5, A6, B5, B4, A3+, SRA3, SRA4, Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B6, 8K, 16K, Custom Size: Width 64-330 mm x Length 89-1321 mm
Paper Weight Tray 1 : 52 – 320 gsm
Multi-purpose tray : 52 – 360 gsm
Input Capacity Tray 1 : 530 sheets
Multi-purpose tray : 300 sheets
Output Capacity Face Down : Max. 610 sheets
Face Up : Max. 300 sheets
Finishing Function Job Offset
Dimensions(WxDxH) 2,629 x 625 x 1,234 mm
Weight(includes supplies) Approx. 182.9 kg
Operating Environment Operating: 10 – 32 °C, 20 – 80 %RH
Storage: 0 – 43 °C, 10 – 90 %RH
No condensation
Power Source Single phase 220 – 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption Operating: Max. 1,600W / Ave. 1,100W
Idle: 40W
Power Save: 30.0W
Deep Sleep: 4.0W
Auto-Off: 0.5W
Safety& Environment Regulation EMC-Directive, CE Mark, GS Mark
Duty Cycle Recommended: 25,000 pages/month
Maximum: 300,000 pages/month
In the Box Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM
